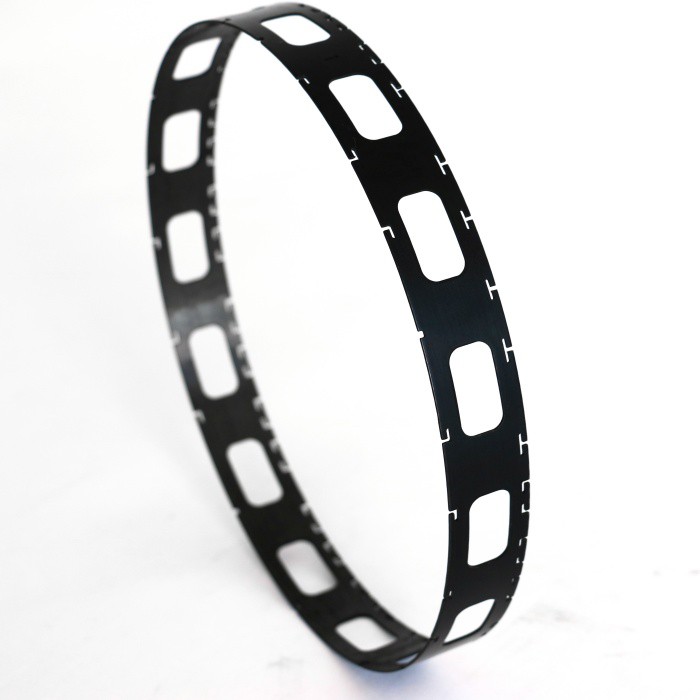

CNC Machining Carbon Fiber Tube

Xinbo Composites supplies CNC machining carbon fiber tubes, such as polishing, cutting, drilling, grinding, milling holes, and slotting.

Carbon Fiber Tube is an excellent choice for many applications and provides the strength and durability you need. The CNC machining ensures the precision of your projects. With superior strength and rigidity, carbon fiber tubes are the perfect choice for any application. CNC machining carbon fiber tubes are easy to install and can be custom-made to your exact specifications.

Xinbo Composites specializes in manufacturing carbon fiber tubes. We are a professional factory of carbon fiber tubing, covers for industrial rollers, robotic arms, industrial automation parts, sporting goods, drones and UAVs, photography and inspections.

CNC Machining Carbon Fiber Tube

1. The machining center is equipped with 4th axis capability for performing CNC machining operations on composite tubes and carbon fiber tubes and parts.
2. CNC machining center for the production of tooling and finishing of carbon fiber tubes and parts
3. Carbon fiber tube finishing equipment, including a centreless grinding machine and precision grinders.
4. CNC lathes with live tooling to finish carbon fiber tubes and produce complex toolings and mandrels
5. High-precision cutting, milling holes, drilling and slotting

CNC Machining Carbon Fiber Tube Styles and Operations

End Machining & Facing
Create a perfectly square, clean, and dimensionally accurate end for bonding or butting against another component.

Operations:
Facing: Machining the tube end flat and perpendicular to its axis.
Chamfering/Beveling: Adding an angled edge (typically 30°-45°) to ease assembly, improve adhesive bonding strength, or for aesthetic purposes.
Profiling: Cutting the tube end to a non-perpendicular angle (e.g., for a mitered joint in a frame).

Hole & Port Machining
Create holes for fasteners (pins, bolts), vents, or fluid pass-through.

Radial Holes: Drilled through the tube wall perpendicular to the axis. Most common. High risk of delamination on the exit side.
Axial Holes: Drilled down the center or parallel to the tube axis (requires specialized fixturing).
Slotted Holes: Machined elongated holes for adjustment or alignment.

Grooving & Threading
To create retention grooves for circlips or o-rings, or threads.
External or internal circumferential grooves. Performed with a fine-pitch, sharp carbide tool or a dedicated grooving tool.

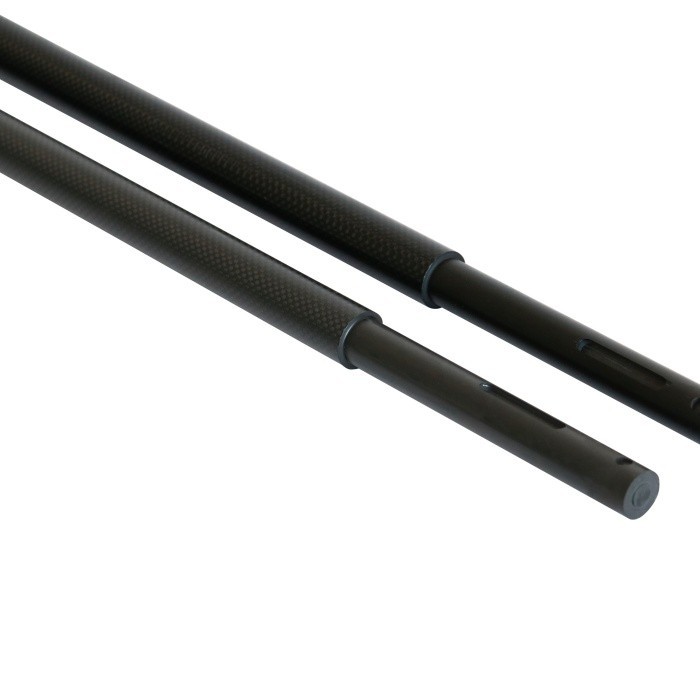

Slotting & Splining
To create a keyway for a pinned connection or a drive spline for torque transmission.
Precise milling of longitudinal slots or gear-like splines along the ID or OD.

We specialize in designing, developing and manufacturing various carbon fiber tubes according to customers' requirements. Our carbon tubes have been exported to Europe, North America, Southeast Asia, Australia, etc.

If you want to customize carbon fiber tubes for your projects, please request a quote.
