The important of industrial rollers with low rotational inertia and lightweight, high-stiffness carbon fiber rollers exhibit lower inertia to acceleration and deceleration (rotational or translational) and can run at higher speeds. Composite rollers reduce waste while increasing productivity and efficiency, and provide better performance than traditional steel or aluminum rollers, particularly when wide web widths, heavy loads, and faster speeds are necessary.

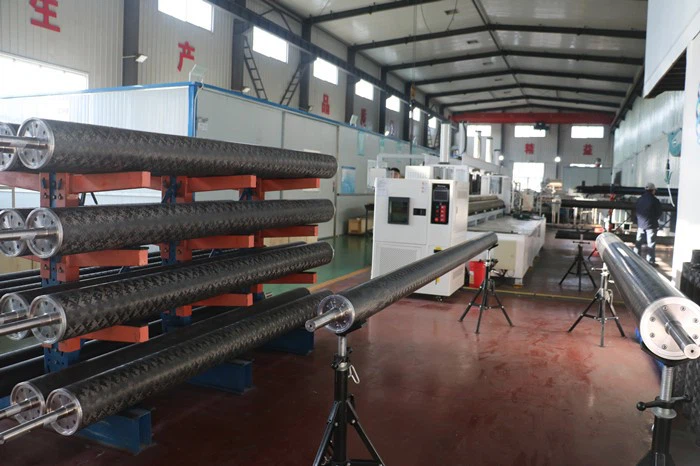

Carbon Fiber Rollers

Composites Roller Advantages

High rigid, Low-Inertia, and low drag compared with traditional metal rollers
Dimensional stability and vibration damping at higher speeds.
Line speed was achieved almost immediately.
Large diameters carbon fiber tubes for rollers are available
Lightweight, low-inertia carbon fiber rollers allow faster web speeds, reduce vibration, decrease waste, and improve production efficiency

CFRP Roller Customization

Uses the best of carbon fiber’s unrivaled properties to ensure rollers with a higher standard of performance compared to metal rollers:
Material: Standard or High Modulus Carbon Fiber or Carbon Fiber Hybrid
Surface: Polished/ Wear-resistant coating
Pattern: Multiple Axial Fiber Layers, or filament winding multi-angles
MAX OD: 500mm
MAX Length: 6m
Diameter Tolerance: ±0.02mm ~ ±0.05mm
Stiffness: Up to 400 GPa
Assembly: Metallic parts

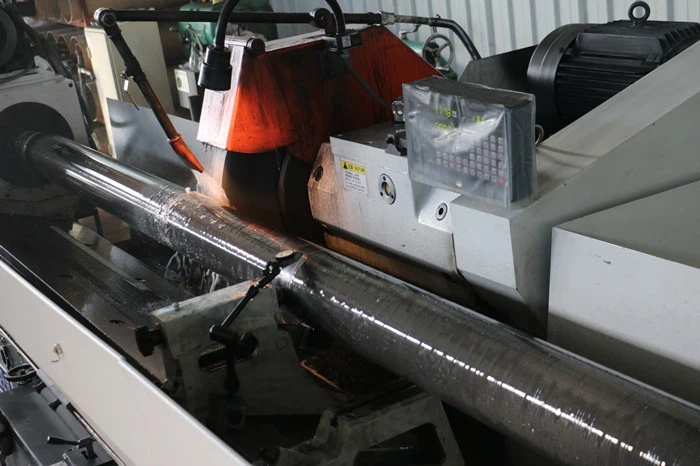

Machining of rollers: Sanding polish according to roughness requirements; Single, double grooves, concave, convex machining, etc.
Surface: Raw Natural; Elastomer: PU; Composite: fiberglass, gel coat, etc; Metallic: chromium, tungsten carbide, etc.
Operating temperature: Up to 60°C standard and higher as requested
Conductivity Insulating, antistatic or conductive surface in accordance with customers' requirements
Chemical resistance: As requested offer rollers capable of operating in various environments
