Carbon Fiber Roller
video

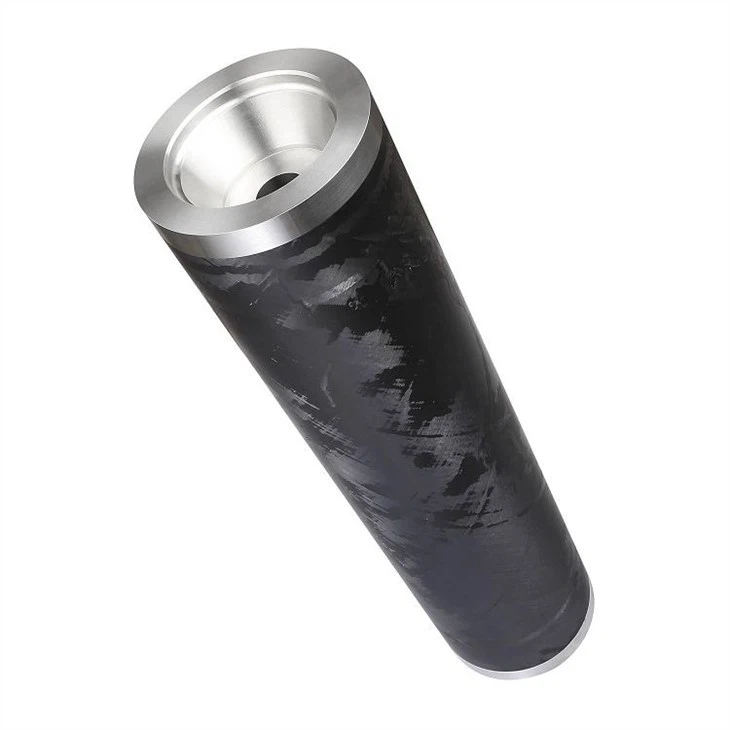

Carbon Fiber Roller

Carbon Fiber Roller

Carbon Fiber stiffness is up to 2 times higher than steel, carbon rollers can run at high speeds without risk of vibration and with less deformation, thus maintaining optimal production efficiency.
Send Inquiry
Product Introduction

Carbon Fiber Rollers VS Steel Rollers VS Aluminum Rollers

Xinbo Composites manufactures a wide variety of large diameters of carbon fiber tubes useful for idler rollers. Our carbon fiber rollers are engineered fit-for-purpose and offer huge advantages over steel, and aluminum rollers.

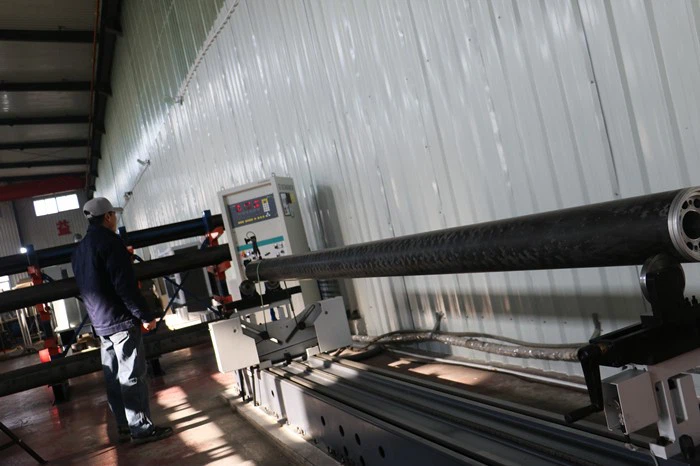

Carbon Fiber Roller Dynamic Test

Advantages include:

  • Virtually no frequency transference so CFRP rollers can operate at higher speeds than steel and aluminum

  • The 80% reduced weight compared to steel rollers, reduce handling and health and safety issues on change over

  • Reduced stresses and inertia greatly increase the life and efficiency of motors and bearings

  • Reduced energy consumption through lightweight

  • Carbon fiber rollers speed up significantly faster than steel and aluminum rollers

  • Lightweight, high stiffness, low deflection

  • Weight reduction, safer & easier handling reduced downtime & maintenance

  • Increased speed, higher productivity

  • Non-corrosive in the ambient environment

  • Reduced deflection, improved quality, and output

  • Durable, wear-resistant coating

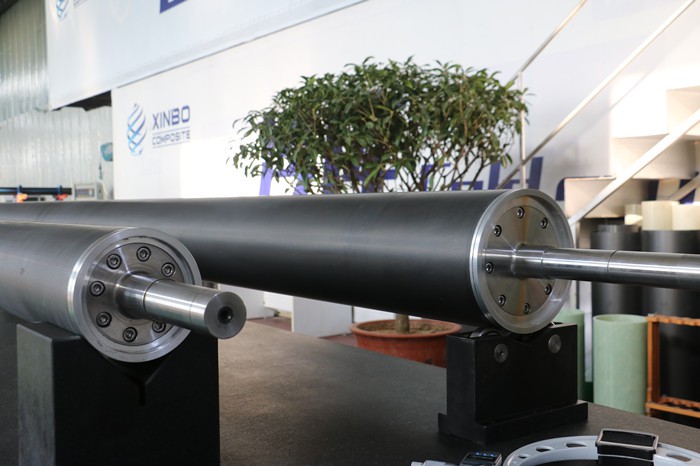

CFRF Roller


Customize Carbon Fiber Roller



Product

Carbon Fiber Roller

Material

Standard Modulus / Intermediate Modulus / High Modulus / Ultra High Modulus (Optional)

Surface

Raw Natural; Elastomer: PU; Composite: fiberglass, gel coat, etc; Metallic: chromium, tungsten carbide, etc.

Pattern

Multiple Axial Fiber and Filament Winding  Multi-Angles

MAX OD

500mm

MAX Length

6m

Diameter Tolerance

±0.02mm ~ ±0.05mm

Machining

Sanding polish according to roughness requirements; Single, double grooves, concave, convex machining, etc.

Assembly

Metallic Parts, Screws

Work Temperature

 60°C standard and higher as requested

Chemical resistance

As requested offer rollers capable of operating in various environments

CFRP Roller  Application

  • Foil production

  • Paper production

  • Converting

  • Textile & Printing Machine

  • Roller Sorter

  • Idler Roller
