Telescopic Pole System

Home/Products/Telescopic Pole System

Composites Telescopic Pole advantages

High-performance and lightweight

Manufacturing from new materials of carbon fiber, fiberglass or hybrid

Easy to Use and Portable

Only one person can operate and compact contracted lengths to transport in any vans.

Various lengths of Customized Services

Design and manufacture based on your project's needed lengths and requirements.

Standardized Production

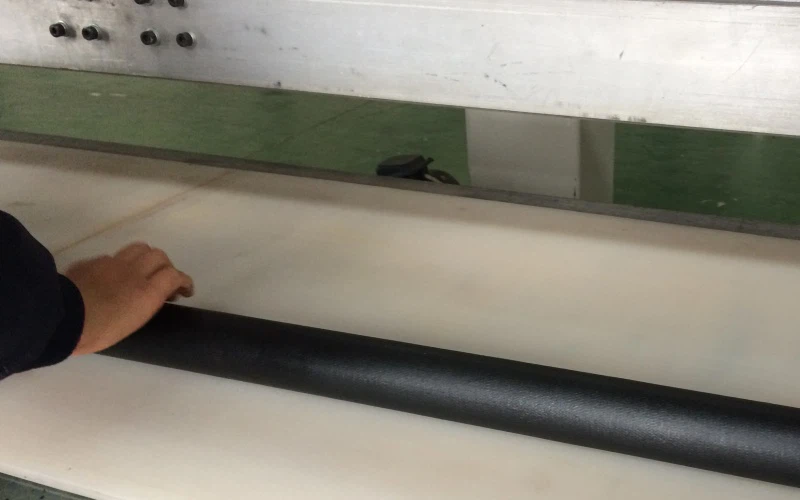

Roll-wrapping carbon or fiberglass tubes, assembled with quick-release clamps or locks.

Telescoping Poles mechanisms We design

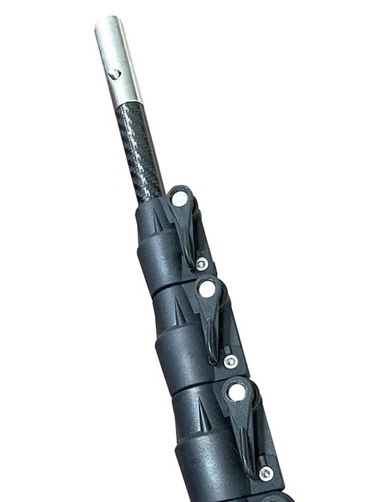

Heavy Duty Telescopic Pole

With Heavy-duty Clamps

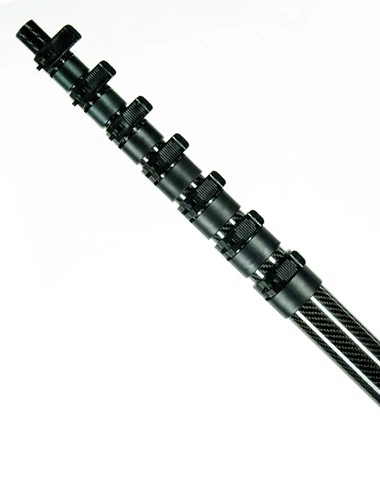

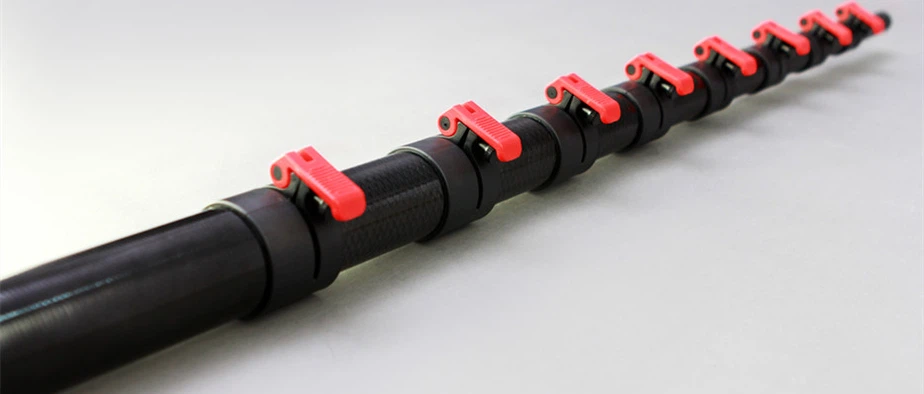

Carbon Telescopic Pole

With Nylon Vertical Clamps

Fiberglass Telescopic Pole

With Nylon Vertical Clamps

Twist Lock Telescopic Pole

With Aluminum Twist Locks

Telescopic Poles are used in a wide range of Applications

Window Cleaning

Aerial Photography

Sports Filming

Underwater Telescopic Carbon Fibre Inspection Camera Pole

Underwater Inspection

Water Rescue

Audio Recording

Telescopic Poles for High Rise Window Cleaning

Cleaning windows in tall buildings can be a challenging task, but with the right equipment, it can be done safely and efficiently.

Cleaning windows in tall buildings can be challenging, but telescopic poles make the process easier and more effective.

Telescopic poles allow window cleaners to reach heights that would be difficult or even impossible to reach using other methods.

There are different types of telescopic poles available, including carbon fiber, aluminum, hybrid, and water-fed poles.

Carbon fiber poles are lightweight, durable, and stiff, making them ideal for high rise window cleaning.

Aluminum poles are also lightweight and strong but are less stiff than carbon fiber poles.

Hybrid poles combine the advantages of carbon fiber and aluminum poles, offering good stiffness and strength.

Water-fed poles come with a built-in water filtration system and are ideal for cleaning windows without leaving streaks.

When choosing a telescopic pole, it’s important to consider factors such as length, material, stiffness, diameter, and compatibility with the cleaning head.

By understanding the benefits and features of telescopic poles, window cleaners can select the right tool for the job and ensure a safe and efficient cleaning process.

The Benefits of Using a Carbon Fiber Telescoping Pole

Weight

One of the major benefits that you get with a carbon fiber telescoping camera how lightweight the equipment is. Cameras need to be transported to away venues, as well as simply moved on and off the field, so the overall weight of the system should be an important consideration when you are purchasing cameras. Some of our product weighs just 50lbs, which is much lighter than many of its competitors, and that light weight is due in part to the use of a carbon fiber pole.

Strength

Despite the light weight of carbon fiber, the material is very strong. That is important both in terms of the stability of the system when it is in use and in terms of its long-term durability. Unlike a metal telescoping camera pole, a carbon fiber pole won’t bend or dent, and it will take some rough treatment when you are transporting it. It’s the weight to strength ratio that makes carbon fiber the best material to use for a telescoping end zone camera pole.

Durability

A camera is a big investment for many teams, so value for money is an important consideration when buying one. That means that it Is not only the initial cost of the system that matters, it is how long it will last as well. As mentioned above, carbon fiber poles don’t bend and dent, and nor do is it corrode or age. Carbon Fiber poles are water resistant and UV resistant and they don’t expand and contract with changing temperatures like metal does. That all adds up to a telescoping sideline camera pole that will last for many seasons, and even if you decide to upgrade the camera equipment at some point, you won’t need to buy a new pole for many years to come.

Common Materials of Water Fed Poles

Water Fed Poles are generally composed of the following materials - Each have their own unique benefits.

Aluminium

Aluminium poles are very sturdy, and extremely hard wearing, but can be heavy when compared with alternatives. For this reason, they lend themselves perfectly for domestic usage but can be a little difficult to control above 25 or 30ft. Nonetheless, they are an excellent starting pole, especially for those on a budget.

Aluminium Poles

Glass Fibre poles are known for their lightweight design and affordable price point, making them a great option for those looking to save money. However, they can be more flexible than other materials when fully extended, which can make them challenging to control as the height increases. We recommend these poles for use up to a maximum of 22ft. Nonetheless, they are perfect for those who prefer a lightweight pole over the sturdiness of an aluminium pole

Hybrid or Carbon Composite

As the name suggests, these poles are made by combining different materials, with around 50% of the material being carbon fibre.
Hybrid Poles are designed to offer some of the benefits of a full carbon fibre pole at a lower cost. They are sturdier than Glass Fibre Poles and lighter than Aluminium Poles, striking a balance between the two. As a result, they are an excellent all-around option for cleaning daily cleaning. We recommend these poles for use up to a maximum of 30ft.
While they may be heavier than carbon fibre poles, hybrids are still relatively light and priced between aluminium and carbon fibre poles, making them a popular choice for new window cleaning businesses looking to balance cost and benefits.

Carbon Fibre

Carbon Fibre is the gold standard of telescopic pole, they are equal parts robust, rigid & lightweight. The average price point is higher than the aforementioned poles, but once you've used a carbon fibre pole, you'll struggle to go back. Carbon fibre is recommended for use up to 50ft, and is especially important if you are using the pole all day, every day.
Light, robust poles relieve a lot of the strain on your body caused by cleaning at height with a water-fed pole. It's common to hear veteran Window Cleaners advise to invest in a carbon fibre pole right from day one.

Comparing an Aluminum vs Carbon Water Fed Pole

Window cleaning poles are manufactured in a variety of materials, including HiMod®, Kevlar, and various hybrids of these materials, but the two most popular types of water fed poles we will analyze here are carbon and aluminum.
For many years, aluminum poles have been the industry standard given that they are durable, long lasting, and less expensive than other poles designed with alternative materials. Then came the carbon fiber water fed pole. Today, with a multitude of water fed poles on the market, it’s important to note that both aluminum and carbon window cleaning poles have their place in the professional window cleaning industry. Looking at the pros and cons of each option will help you determine which tool is best for your window cleaning jobs.

Flex
Aluminum has a strength of about 500 kilonewtons compared to carbon fiber which can have up to 1600 kilonewtons of strength. Simply put, carbon fiber is 2 – 5 times more rigid than aluminum.Looking at the aluminum pole, it flexes considerably when extended above 30 feet, which for the user, translates into increased exertion to complete the job. More effort means a greater likelihood of fatigue which in turn, could result in a longer time on-site. When you factor in high pressure water running through the pole, the flex of an aluminum pole becomes even more cumbersome and has a greater potential to cause injury to the operator and damage to the facility’s window and glass.

Weight
Carbon fiber composite has a density almost 2 times less than aluminum, meaning that carbon fiber reduces the weight of an aluminum pole of the same size by approximately 42%. Combined with its rigidity, carbon poles reduce the fatigue and risk of repetitive stress injuries. Because carbon poles minimize the effort needed to remove dirt and debris from windows and overall exertion to clean high access windows, professionals can finish jobs faster and with dramatically less physical strain.

Price
A carbon waterfed pole has a higher upfront cost than its aluminum counterpart. Since they are more expensive, they are not always the best option for window cleaning at lower heights.

Health & Safety Guidance for Using Carbon Fibre Water-Fed Poles

Electrical Conductivity Risks

The poles feature insulated and isolating handle sections, however when working with a water-fed pole there is always a risk that the water inside the pole hose or other hose connections can conduct electricity, even if the pole handle being held is insulated. Also, if working in wet conditions the wet pole can conduct electricity.
Always check for overhead power cables before use - carbon-fibre poles are good conductors of electricity. Do not work within a zone of power cables that would allow the pole to contact the cables if the pole was to be lowered in any direction.
Do not work in thunderstorms – lower any pole and pack away as soon as is practical.

Skeletal & Muscular Damage Risks

Repetitive strain injury can occur when carrying out any tasks of a repetitive nature. Ensure that where possible the legs and whole body are used to move and operate the pole. Ensure that no single movement or task is continued for longer than needed. Take regular breaks.
Ensure that the pole is being used at an angle that easily allows you to look up at the building. Do not work for any extended period too close to the building. A minimum ratio is 4:1 (height: distance) from the building for short periods; ideal is 3:1 or 2:1 for long term work.
Ensure that any pole weight, extended height, and brush weight is within your realistic capabilities and experience.
Avoid working in high winds with high level poles. It is good practice when working at heights, with any increased speed of wind blowing, to lower the pole before walking it round a corner or between high buildings.

Potential Risks to Third Parties

If a pole is allowed to get out of control and fall it can cause extensive damage to person and property. The most likely cause of this is if the operator trips, slips or falls when moving with the pole extended.
When moving a pole – check the route before moving any distance. If working at height above 40ft it is advised that a second operator is on hand to assist with hose management, obstruction observance and for the safety of others present on site.
Hoses can cause a trip hazard. Ensure that hoses only cross walkways when essential. Ensure that hoses are laid flat when crossing walkways and are well signed, indicated, or covered. Ensure that all hose colours used, meet minimum hazard requirements of visibility for the working environment.
Freezing water can cause a slip hazard to walkway users both during and after the cleaning process is taking place.

Frequently Asked Questions about Telescopic Pole System

Q: What are the materials made for telescopic pole systems?

A: Our telescopic pole systems are made of carbon fiber, fiberglass, carbon fiber and fiberglass hybrid, carbon kevlar materials.

Q: How many telescopic locking mechanisms do you have?

A: We have level and vertical, heavy-duty clip clamps and twist locks, and spring button telescoping locking mechanisms.

Q: What are the telescopic pole length ranges do you produce?

A: We customize carbon fiber telescopic pole lengths from 1m up to 24m and fiberglass telescopic poles from 1m to 15m.

Q: Do you supply a top connector for telescopic poles?

A: We have top connectors of telescopic poles such as Euro screws, 1/4"or 3/8" screws, and we also customize connectors according to customers' drawings and requirements.

Q: How many diameters and wall thicknesses do you offer?

A: For removal telescopic poles, we have 9 diameters and 1.5mm wall thickness design, and for anti-off telescopic poles, we supply 9 diameters and 1.2mm wall thickness.

Q: Do you customize anti-spin or anti-rotate telescopic poles?

A: Yes, we customize anti-spin/rotate telescopic poles according to customers projects' needs.

Q: Can carbon fiber withstand water?

A: If you need a material that is weather-resistant and waterproof, carbon fiber might be a top choice. Carbon fiber is waterproof and resistant to weather when treated to be so. It is suitable for products that need to be mould resistant and easy to clean and disinfect.

Q: Does carbon fibre react with water?

A: Prolonged exposure to heat and moisture may have little effect on the flexural strength of carbon fiber. But under sustained load and in the presence of saltwater, the tensile strength decreases between 7 % and 12 %.

Q: When to use carbon fiber poles?

A: These poles are for hikers that want to go farther, faster and carry less weight. You should use carbon fiber trekking poles if you are speed demon on the trail or place a premium on weight savings.

Q: Does carbon fiber crack in the sun?

A: While the UV light does not destroy the carbon fibers themselves, it can cause the premature degradation of sheets and panels by degrading their epoxy resin. In this respect, not all carbon fiber products are UV stable.

Q: What can damage carbon fiber bike?

A: In order to know if your carbon fiber bike is damaged, you'll need to have the bike X-rayed. Carbon fiber bikes can be sensitive to heat, so if you store your bike in a car or in a hot garage, it can also degrade the material. UV rays and salt water can also degrade carbon fiber bikes.

Q: Are carbon fiber trekking poles worth it?

A: Carbon poles have a lot going for them: they are lightweight, can withstand repeated vertical impact, and help absorb the pounding of miles without jarring your wrists.

Q: What is the difference between carbon and aluminium tripods?

A: Carbon fibre also has a much higher stiffness rating than aluminium – so when comparing tripods of similar tubing sizes, carbon fibre has far better vibration absorption from environmental factors such as wind and flowing water, and is less likely to bend or flex.

Q: Are carbon fibre tripods worth it?

A: I suggest you get a carbon fiber tripod even though it is more expensive than aluminum. However, aluminum tripods are a great choice if you are just starting in photography, and need to cash out for a lens and camera as well. But avoid the cheapest tripods, as the saying goes: Buy quality once, garbage twice.

Q: What is the best material for a camera tripod?

A: Carbon Fiber is the lightest and strongest material for tripod legs so is often preferred by outdoor and traveling photographers.

Q: Why are carbon fiber tripods so expensive?

A: It is a strong material that is also lightweight. Carbon fiber is five times stronger than steel but is much lighter. But it costs a lot more to produce carbon fiber than it does steel or aluminum and that is why you see a massive price increase when you start shopping for carbon fiber tripods.

Q: Can carbon fiber be see through?

A: Carbon fibers (whatever type) are inherently black (in the visual spectrum, X-ray e.g. is different though). Sure, but any structurally useful amount of carbon will be opaque. And completely transparent structural GFRP (with suitably high fiber content) is not yet available.

Q: What is a telescoping pole?

A: A telescoping pole is usually comprised of a plurality of hollow tubular sections, which are slideably received within each other, thereby allowing the pole to be extended and retracted to various lengths.

Q: What is a telescoping pole used for?

A: Adjust the long pole to the length necessary for your specific task: reaching high ceilings, painting walls, dusting light bulbs, cleaning house roofs, washing windows, and more.

Q: Why use telescopic poles for high rise window cleaning?

A: Telescopic poles allow window cleaners to reach heights that would be difficult or even impossible to reach using other methods. They can be extended to different lengths, making them ideal for cleaning windows on tall buildings or structures. In addition, they are lightweight, easy to handle, and require less setup time than other types of equipment.

Q: What are the types of telescopic poles for high rise window cleaning?

A: There are several types of telescopic poles available for high rise window cleaning. Some of the most common ones include:
1)Carbon fiber poles: These poles are lightweight, durable, and have high stiffness, making them ideal for high rise window cleaning.
2)Aluminum poles: These poles are also lightweight and have good strength. They are less expensive than carbon fiber poles but are less stiff.
3)Hybrid poles: These poles combine the advantages of carbon fiber and aluminum poles. They are lightweight, strong, and offer good stiffness.
4)Water-fed poles: These poles come with a built-in water filtration system and are ideal for cleaning windows without leaving streaks.

As one of the most professional telescopic pole system manufacturers in China, we're featured by quality products and good service. Please rest assured to buy or customized telescopic pole system at competitive price from our factory.
