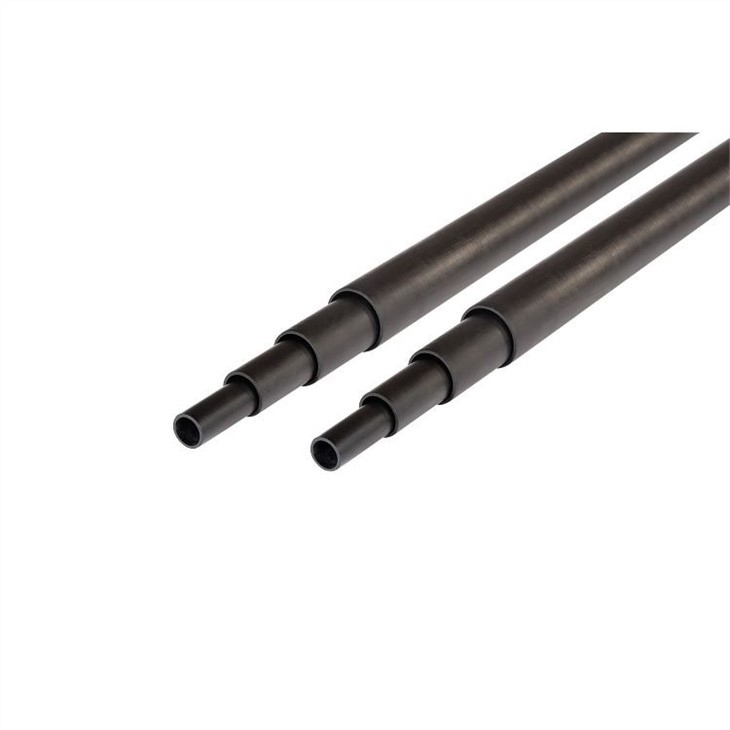

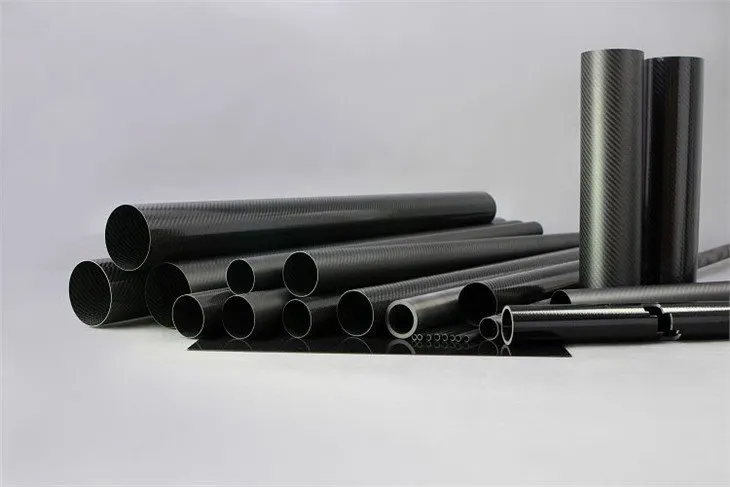

Carbon Fiber Tubing

Carbon Fiber Tubing is made up of carbon fiber woven and unidirectional fabrics. Secondly, they have excellent torsional properties, as well as compressive strength, making them ideal for high-torque applications. More critically, these carbon tubes are available in round, rectangular and square shapes, which can be axially optimized or made of higher modulus carbon fibers for increased bending stiffness.

Carbon Fiber Tubing Features

1. Exceptional Specific Strength and Stiffness
Carbon fiber has one of the highest strength-to-weight and stiffness-to-weight ratios of any material, which is 5 times stronger than steel and 2 times stiffer, and also 70% lighter. It is also stronger and stiffer than aluminum and titanium at a fraction of the weight.

2. Low Density (Extreme Lightweight)
Density of ~1.6 g/cm³, compared to 7.8 g/cm³ for steel and 2.7 g/cm³ for aluminum. Reduces mass, inertia, and energy consumption. In vehicles, this improves acceleration, braking, handling, and fuel efficiency. In robotic arms and industrial rollers, faster, more precise movement with less powerful motors.

3. High Fatigue Resistance
Excellent resistance to cyclic loading and metal fatigue. It does not develop stress concentrators like microcracks in metals.
Ideal for dynamic, high-stress components like aircraft wings, idler rollers, and sporting equipment

4. Corrosion and Chemical Resistance
Inert to most chemical and environmental degradation. It does not rust, oxidize, or corrode like metals. Perfect for harsh environments, such as chemical processing equipment, offshore oil & gas, marine vessels, and infrastructure where salt, acids, or moisture are present. Reduces maintenance and lifetime cost.

5. Excellent Durability and Longevity
When properly designed and protected from UV, it offers an extremely long service life with minimal property degradation.
Creates durable, low-maintenance products with longer usable lifespans, offsetting higher initial costs.

Carbon Fiber Tubing Specifications

Material: Standard Modulus/Intermediate Modulus/ High Modulus / Ultra High Modulus Carbon Fiber

Patterns: UD, Twill, Plain or Carbon and Kevlar Hybrid

Process: Mold Pressing, Autoclave Molding

Cross Sections: up to 100mm

Thickness: 1mm-10mm

Length: up to 2000mm

Manufacturing Tolerances: Raw Tubing: ±0.1mm

Polished Tubing: ±0.02mm ~ ±0.05mm, Painted Tubing: ±0.15mm

CNC Machining: Drilling, Cutting, Slotting, Threading

Surface Finish: Polished, Glossy & Matte Clear Coated

Assembly and bonding: we use the strongest adhesive and bond tubes with aluminum or plastic parts, and assemble them according to customers' requirements.

Carbon Fiber Tubing Applications

Lightweight frames for machine construction, arms and robotic grippers for fast-moving product handling systems, UAVs and drones, lightweight constructions, tube connections for model building, sporting goods and other types of medical equipment, and yacht antennas.
