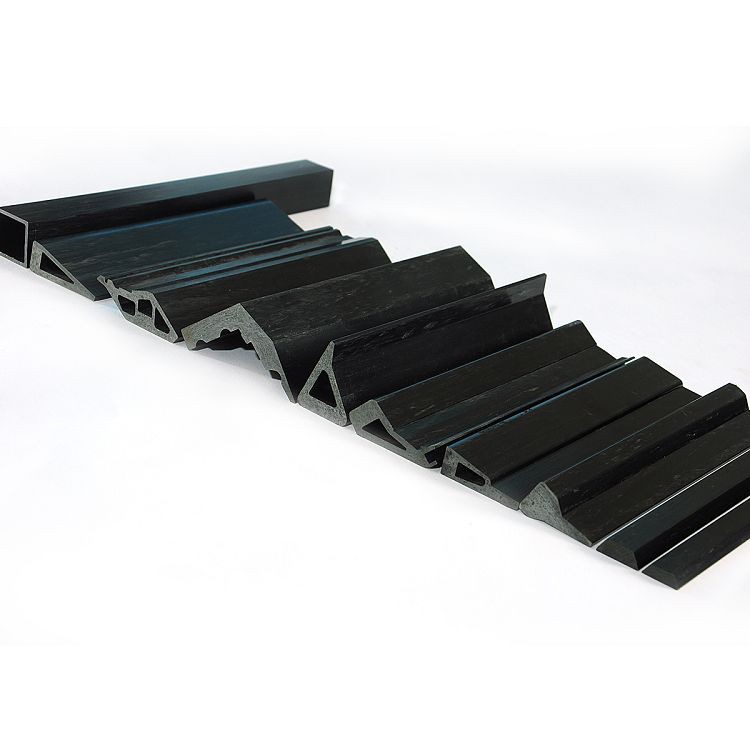

Carbon Fiber Pultruded Profiles
Carbon Fiber Pultruded Profiles are manufactured using a continuous extrusion process.
High-quality carbon fiber
Fiber orientation primarily longitudinal = unidirectional
Very good pressure and bending resistance
Customized Pultruded Carbon Fiber Profiles
Material: Carbon Fiber Yarn and Epoxy
Surface: Carbon Fiber Felt
MIN Diameter: 2 mm
MAX Diameter: 200mm
OD Tolerance: ±0.2mm
Max Length: Customized
Fiber Content: > 60%
Resin Content: < 40%
Color: Can be Customized
CFRP Profiles Pultrusion Process
The pultruded process continuously pulls fibers from rolls, which are then wetted with a matrix material (usually a thermosetting resin like epoxy resin). Subsequently, they are pulled through a heated die, which determines the shape of the profile. Polymerization of the resin takes place in the die, forming a rigid profile with a diameter corresponding to that of the die and a length that is endless, in theory. The extruded process guarantees an accurate design and measurement control, perfectly aligned fibers and a smooth surface. The technology is suitable for all types of fibers or a combination of fiber types. High fiber-volume content is feasible, which makes it possible to reach a high specific rigidity and strength of the profiles. The serial character and the controllability of the process ensure a good price/quality ratio.
Tensile Strength: 4900 Mpa
Tensile Modulus: 230 Gpa
Fiber Content: > 60%
Resin Content: < 40%
Pultruded Carbon Fiber Profiles Application
● Safety & Protection
● Structure Support
● Garden Tools
